Schneider 140ERT85410 PLC Module SCHNEIDER ELECTRIC MODICON Quantum PLC

Name: Schneider 140ERT85410 PLC Module SCHNEIDER ELECTRIC MODICON Quantum PLC
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 140ert85410
Price: 210.00 USD
Availability: InStock

نام تجاری:	Schneider
شماره مدل:	140ert85410
مقدار تولیدی:	1
قیمت:	Negotiations

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

فرانسه

جزئیات بسته بندی:

جعبه اصلی جدید

برجسته کردن:

Schneider Modicon Quantum PLC module,Schneider 140ERT85410 PLC module,low voltage PLC protection module

Schneider 140ERT85410 PLC module

low voltage PLC protection module

توضیحات محصول

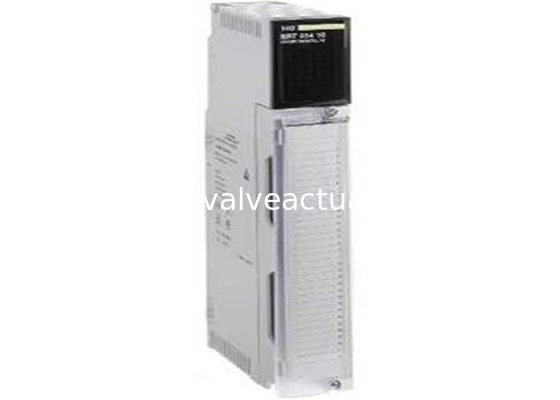

Schneider 140ERT85410 PLC Module SCHNEIDER ELECTRIC MODICON Quantum PLC

Quick Details

• SCHNEIDER ELECTRIC

• MODICON

• 140-ERT-854-10

• 140ERT85410

• MODULE QUANTUM SMART TIME TAG 24-125VDC 32PT

• One Year Warranty

Specifications

Manufacturer	Schneider Electric
Series	Modicon Quantum
Marking	CE
Product or component type	Multifunction input module
Number of terminals	≤ 40
Function of module	• Status monitoring on discrete inputs • Time and date stamped event logging • Status logging counting 500 Hz
Time synchronisation protocol	DCF77
Product compatibility	• Concept • Unity Pro
Group of channels	2 groups of 16 inputs process input
Discrete input number	• 1 discrete input(s) at 24 V clock signal input • 32 discrete input(s) at 24...125 V process input
Switching voltage	• 125 V at 1 mA for process input • 24 V at 6 mA for process input • 48 V at 2.5 mA for process input • 60 V at 2.5 mA for process input
Power consumption in W	≤ 7.5 W for process input
Insulation	• By optocoupler clock signal input • By optocoupler between group of channels
Anti bounce filtering	Configurable from 0 to 255 ms
Input state	Inversion configurable
Acquisition time	1 ms clock signal input
Input current	5 mA for clock signal input
Electrical connection	• Shielded cable, cable length: ≤ 1968.5 ft (600 m) for process input • Unshielded cable, cable length: ≤ 1312.34 ft (400 m) for process input
Connections - terminals	Screw terminal block
Local signalling	• 1 LED green communication on the bus (Active) • 1 LED green self test OK, module ready (R) • 1 LED red fault (F) • 32 LEDs status of inputs (1 to 32)
Current consumption	• 0.07 mA at 24 V DC 140XCP90000 module • 3 mA at 24...125 V DC external power supply per group of channel • 300 mA at 5 V DC bus

Quantum PLC Module Features

Utilizes modern large-scale integrated circuit technology with strict production processes and advanced anti-interference technology for high reliability.
Includes hardware fault self-detection with timely alarm notifications.
Supports programming in Concept for peripheral component fault self-diagnosis, providing comprehensive system protection.
All modules support hot-swapping without system downtime, reducing maintenance workload.
LED status indicators provide visual monitoring of CPU and I/O template channel status for quick maintenance.
Complete supporting facilities with comprehensive functions and strong applicability.
Supports advanced two-machine hot-standby system with simple configuration and convenient operation.
Fast switching time (within one PLC scanning cycle) ensures uninterrupted logic operations during failover.

Applications

Our products are widely used in:
