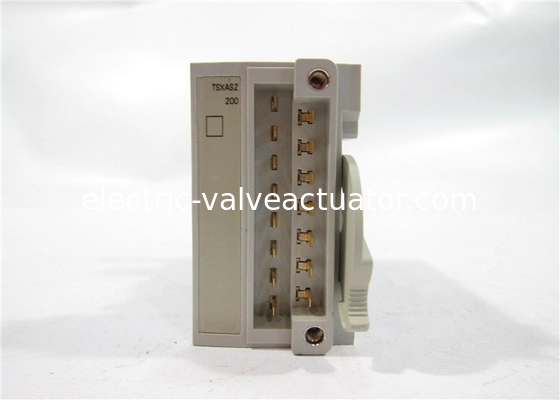

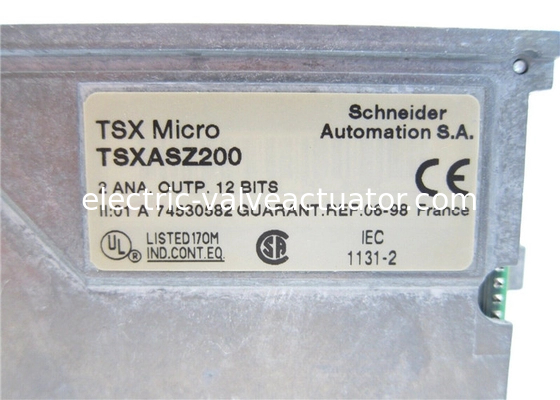

Schneider Electric TSXASZ200 TSX Micro 2 analogue output +- 10 V 0-20 4-20 mA

Name: Schneider Electric TSXASZ200 TSX Micro 2 analogue output +- 10 V 0-20 4-20 mA
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: TSXASZ200
Price: 210.00 USD
Availability: InStock

نام تجاری:	Schneider
شماره مدل:	TSXASZ200
مقدار تولیدی:	1
قیمت:	Negotiations

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

فرانسه

تعداد dhannels:

ولتاژ انزوا:

1500 ولت AC

جزئیات بسته بندی:

جعبه اصلی جدید

برجسته کردن:

Schneider Electric TSX Micro analog output module,TSXASZ200 analog output module with warranty,Low voltage protection analog output device

TSXASZ200 analog output module with warranty

Low voltage protection analog output device

توضیحات محصول

Schneider Electric TSXASZ200 TSX Micro 2 analogue output ±10 V 0-20 4-20 mA

Key Attributes

Number Of Channels	2
Isolation Voltage	1500 V AC

Product Description

Main range of product: Modicon TSX Micro automation platform
Product type: Analog output module
Number of channels: 2
Analogue output type: 0...20 mA or 4...20 mA ±10 V
Complementary analog/digital conversion: 11 bits + sign 0...20 mA or 4...20 mA, 11 bits ±10 V
Measurement resolution: 0...20 mA or 4...20 mA, ±10 V
Output load: ≤0.6 Ω (0...20 mA or 4...20 mA), ≥1 Ω (±10 V)
Protection type: Open-circuit (0...20 mA or 4...20 mA)
Temperature drift: 0.107%/10°C (0...20 mA or 4...20 mA), 0.083%/10°C (±10 V)
Current consumption: 150 mA
Isolation voltage: 1500 V AC
Net weight: 0.2 kg

Compliance Information

EU RoHS Directive: Not applicable, out of EU RoHS legal scope
China RoHS Regulation: China RoHS declaration
WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty

12 months contractual warranty
