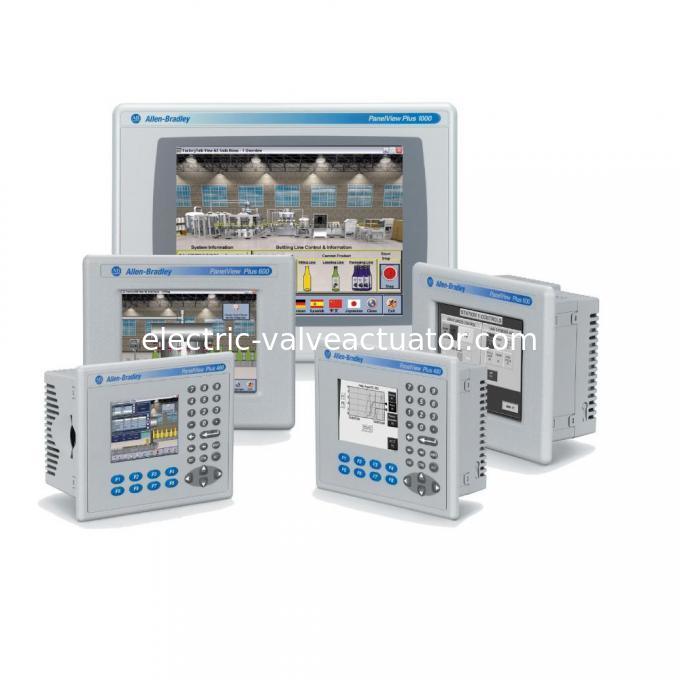

100-240V HMI Touch Screen Panel AB Panelview Plus 600 2711P-B6M20A8

HMI Touch Screen AB Allen Bradley 2711P-B6M20A8 PanelView PLUS 600 SER A



2711P-B6M20A8 PARAMETER

The current Allen Bradley Panelview 6 Plus 2711P-B6M20A8 is an HMI that can allows the user to interact with their machine. The Panelview interface has a 5.7 in. Monochrome Display.This unit is powered using 100-240 VAC power and has internal memory of 256 MB-RAM. Weight and dimensions are 6 lbs. and 14 x 11 x 8 in. The most common Series are Series A and Series B. This device is an open industrial network that supports real time I/O messaging, as well as message exchange. This port can work with application transfers and printing as well. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required.
The Panelview Plus 6 Graphic Terminals makes it possible to allows users to monitor, manage, and display application status informationThese terminals offer the open-platform flexibility of the Windows CE operating system and the compatibility of the FactoryTalk View Studio Machine Edition software. The PanelView Plus 6 terminals use modular modules that allows for flexible configuration, installation, and upgrades. The processor speed increased from 350 MHz to 1 GHz. The screen transition rate approximately 70% faster. The system memory increased from 64MB RAM to 256MB RAM and flash storage space increased from 64MB to 512MB. The illumination of backlight displays has increased. Also, there is greater connectivity to a variety of external hardware such as printers, mice, and keyboards.
The terminals can be set up to run an open or closed desktop environment, open systems can launch Windows Explorer desk top on start up. A closed system launches a factory talk edition on start up.
It should be noted to plan for proper spacing around the terminal, inside enclose, for ventitolation anc connections. Temperature around the terminal should be 32 degrees fahreheit to 131 degrees fahrenheit.



QUICK DETAILS

1. Brand :Allen Bradley (AB)
2. Model :2711P-B6M20A8
3. Place of Origin : USA

DESCRIPTION

• Touch Display Screen
• MONITOR
• OPERATOR INTERFACE PANEL

SPECIFITIONS

PanelView Plus 6 terminals are shipped with support for a large selection of Canon, Epson, Hewlett-Packard, and Brother Printers.
