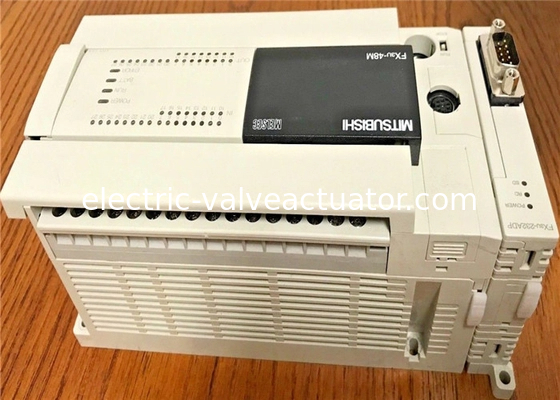

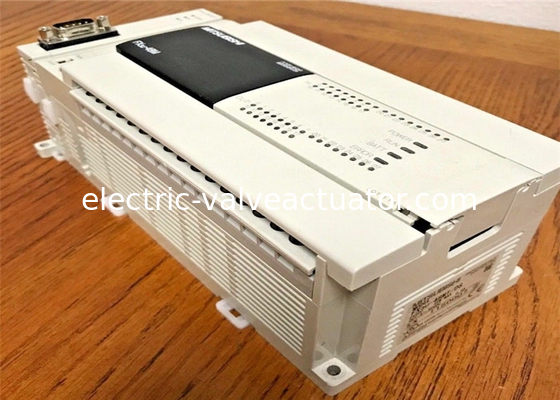

24 DC Voltage PLC Programmable Logic Controller With CC - Link FX3U-48MT

Name: 24 DC Voltage PLC Programmable Logic Controller With CC - Link FX3U-48MT
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: FX3U-48MT
Price: 210.00 USD
Availability: InStock

نام تجاری:	Mitsubishi
شماره مدل:	FX3U-48MT
مقدار تولیدی:	1
قیمت:	قابل مذاکره
شرایط پرداخت:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
توانایی عرضه:	In Stock

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

Place of Origin:

Japan

گواهی:

Packaging Details:

New Original Box

Supply Ability:

In Stock

توضیحات محصول

Detailed Product Description

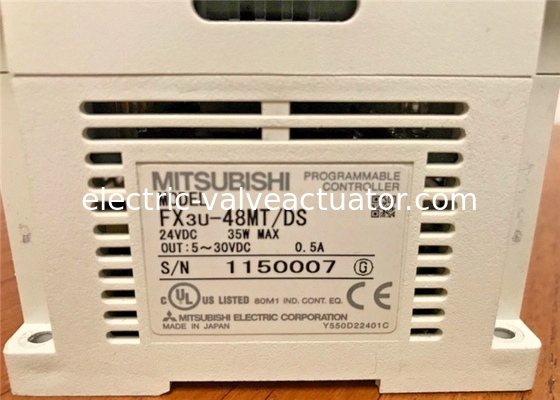

Product Name:	PLC Programmable Logic Controller	Model:	FX3U-48MT
Voltage:	24VDC	Output:	5-30 VDC
Power:	25W Max	Current:	0.5A
Highlight:	industrial programmable controller , industrial automation using plc

MITSUBISHI, MELSEC, FX3U-48MT, PLC Module PLC Programmable Logic Controller

Quick Detail

PLC FX3U - Top of the Line

Controllable I/O: 16 - 384 points with CC-Link or AS-i remote I/O

Main Unit I/O: 16/32/48/64/80/128 points

FX3U Main Units with 16 I/O

Model Number	FX3U-16MR/DS	FX3U-16MR/ES	FX3U-16MT/DSS	FX3U-16MT/DS	FX3U-16MT/ESS	FX3U-16MT/ES
Stocked Item	S	S	S	S	S	S
Certification	UL • cUL • CE (EMC)
Integrated Inputs/ Outputs	16	16	16	16	16	16
Power Supply	24VDC	100-240VAC	24VDC	24VDC	100-240VAC	100-240VAC
Integrated Inputs	8	8	8	8	8	8
Integrated Outputs	8	8	8	8	8	8
Output Type	Relay	Relay	Transistor (Source)	Transistor (Sink)	Transistor (Source)	Transistor (Sink)
Power Consumption (W)	25	30	25	25	30	30
Weight (kg)	0.60	0.60	0.60	0.60	0.60	0.60
Dimensions (W x H x D) mm	130 x 90 x 86	130 x 90 x 86	130 x 90 x 86	130 x 90 x 86	130 x 90 x 86	130 x 90 x 86

FX3U Main Units with 32 I/O

Model Number	FX3U-32MR/DS	FX3U-32MR/ES	FX3U-32MT/DSS	FX3U-32MT/DS	FX3U-32MT/ESS	FX3U-32MT/ES	FX3U-32MR/UA1	FX3U-32MS/ES
Stocked Item	S	S	S	S	S	S	S	S
Certification	UL • cUL • CE (EMC)
Integrated Inputs/ Outputs	32	32	32	32	32	32	32	32
Power Supply	24VDC	100-240VAC	24VDC	24VDC	100-240VAC	100-240VAC	100-240VAC	100-240VAC
Integrated Inputs	16	16	16	16	16	16	16	16
Integrated Outputs	16	16	16	16	16	16	16	16
Output Type	Relay	Relay	Transistor (Source)	Transistor (Sink)	Transistor (Source)	Transistor (Sink)	Relay	Triac
Power Consumption (W)	30	35	30	30	35	35	35	35
Weight (kg)	0.65	0.65	0.65	0.65	0.65	0.65	0.65	0.65
Dimensions (W x H x D) mm	150 x 90 x 86	150 x 90 x 86	150 x 90 x 86	150 x 90 x 86	150 x 90 x 86	150 x 90 x 86	182 x 90 x 86	150 x 90 x 86

FX3U Main Units with 48 I/O

Model Number	FX3U-48MR/DS	FX3U-48MR/ES	FX3U-48MT/DSS	FX3U-48MT/DS	FX3U-48MT/ESS	FX3U-48MT/ES
Stocked Item	S	S	S	S	S	S
Certification	UL • cUL • CE (EMC)
Integrated Inputs/ Outputs	48	48	48	48	48	48
Power Supply	24VDC	100-240VAC	24VDC	24VDC	100-240VAC	100-240VAC
Integrated Inputs	24	24	24	24	24	24
Integrated Outputs	24	24	24	24	24	24
Output Type	Relay	Relay	Transistor (Source)	Transistor (Sink)	Transistor (Source)	Transistor (Sink)
Power Consumption (W)	35	40	35	35	40	40
Weight (kg)	0.85	0.85	0.85	0.85	0.85	0.85
Dimensions (W x H x D) mm	182 x 90 x 86	182 x 90 x 86	182 x 90 x 86	182 x 90 x 86	182 x 90 x 86	182 x 90 x 86

FX3U Main Units with 64 I/O

Model Number	FX3U-64MR/DS	FX3U-64MR/ES	FX3U-64MT/DSS	FX3U-64MT/DS	FX3U-64MT/ESS	FX3U-64MT/ES	FX3U-64MR/UA1	FX3U-64MS/ES
Stocked Item	S	S	S	S	S	S	S	S
Certification	UL • cUL • CE (EMC)
Integrated Inputs/ Outputs	64	64	64	64	64	64	64	64
Power Supply	24VDC	100-240VAC	24VDC	24VDC	100-240VAC	100-240VAC	100-240VAC	100-240VAC
Integrated Inputs	32	32	32	32	32	32	32	32
Integrated Outputs	32	32	32	32	32	32	32	32
Output Type	Relay	Relay	Transistor (Source)	Transistor (Sink)	Transistor (Source)	Transistor (Sink)	Relay	Triac
Power Consumption (W)	40	45	40	40	45	45	45	45
Weight (kg)	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0
Dimensions (W x H x D) mm	220 x 90 x 86	220 x 90 x 86	220 x 90 x 86	220 x 90 x 86	220 x 90 x 86	220 x 90 x 86	285 x 90 x 86	220 x 90 x 86

FX3U Main Units with 80 I/O

Model Number	FX3U-80MR/DS	FX3U-80MR/ES	FX3U-80MT/DSS	FX3U-80MT/DS	FX3U-80MT/ESS	FX3U-80MT/ES
Stocked Item	-	S	-	S	S	S
Certification	UL • cUL • CE (EMC)
Integrated Inputs/ Outputs	80	80	80	80	80	80
Power Supply	24VDC	100-240VAC	24VDC	24VDC	100-240VAC	100-240VAC
Integrated Inputs	40	40	40	40	40	40
Integrated Outputs	40	40	40	40	40	40
Output Type	Relay	Relay	Transistor (Source)	Transistor (Sink)	Transistor (Source)	Transistor (Sink)
Power Consumption (W)	45	50	45	45	50	50
Weight (kg)	1.2	1.2	1.2	1.2	1.2	1.2
Dimensions (W x H x D) mm	285 x 90 x 86	285 x 90 x 86	285 x 90 x 86	285 x 90 x 86	285 x 90 x 86	285 x 90 x 86

FX3U Main Units with 128 I/O

Model Number	FX3U-128MR/ES	FX3U-128MT/ESS	FX3U-128MT/ES
Stocked Item	S	-	-
Certification	UL • cUL • CE (EMC)
Integrated Inputs/Outputs	128	128	128
Power Supply	100-240VAC	100-240VAC	100-240VAC
Integrated Inputs	64	64	64
Integrated Outputs	64	64	64
Output Type	Relay	Transistor (Source)	Transistor (Sink)
Power Consumption (W)	65	65	65
Weight (kg)	1.8	1.8	1.8
Dimensions (W x H x D) mm	350 x 90 x 86	350 x 90 x 86	350 x 90 x 86

FX3UC Main Units with 16 - 96 I/O

Model

FX3UC-16MT/D

FX3UC-16MT/DSS

FX3UC-16MR/DS-T

FX3UC-32MT/D

FX3UC-32MT/DSS

FX3UC-64MT/D

FX3UC-64MT/DSS

FX3UC-96MT/D

FX3UC-96MT/DSS

Input

Type

Sink

Sink / Source

Sink

Sink / Source

Sink

Sink / Source

Sink

Sink / Source

Weight

(kg)

0.2

0.3

0.35

Melsec FX3U Communication Board　

FX3U-232-BD RS-232C SERIAL PORT (1 CH)

FX3U-422-BD RS-422 SERIAL PORT (1 CH

FX3U-485-BD RS-485 SERIAL PORT (1 CH)

FX3U-CNV-BD FX3U MODULE TRANSFORM UNIT

FX3U-USB-BD USB COMMUNICATION PORT(FOR ALL FX SERIES PLC)USB

Melsec FX3U Modules

FX3U-2HSY-ADP 2 CHANNELS PULSE TRAIN OUTPUT

FX3U-4AD-ADP

FX3U-4AD-PT-ADP

FX3U-4AD-TC-ADP

FX3U-4DA-ADP

FX3U-4HSX-ADP 4 CHANNELS HIGH SPEED COUNTER

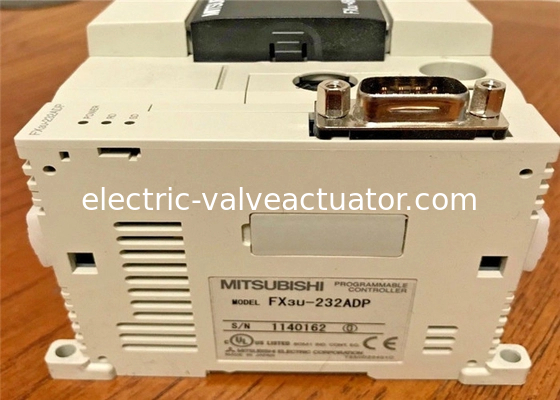

FX3U-232ADP RS232 COMMUNICATION MODULE

FX3U-485ADP RS485 COMMUNICATION MODULE

Melsec FX3U Modules

FX3U-4AD

FX3U-4DA

FX3U-7DM DISPLAY PANEL

FX3U-7DM-HLD DISPLAY PANEL HOLDER

FX3U-20SSC-H 2 CHL SSC-NET MODULE

FX3U-32BL BACKUP BATTERY FOR FX3UC CPU

SIM Card

FX3U-FLROM-16 16K FLASH ROM MEMORY CASSETTE 16K

FX3U-FLROM-64 64K FLASH ROM MEMORY CASSETTE 64K

FX3U-FLROM-64L 64K PLC PROGRAM TRANSFER UNIT
