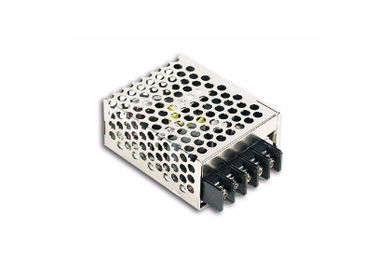

15W Low Voltage Protection Devices AC to DC Switching Power Supply

15W Low Voltage Protection Devices AC to DC Switching Power Supply

  • 15W Low Voltage Protection Devices AC to DC Switching Power Supply
15W Low Voltage Protection Devices AC to DC Switching Power Supply
جزئیات محصول:
Place of Origin: China
نام تجاری: MEAN WELL
Model Number: RS-15-5
پرداخت:
Minimum Order Quantity: 2 sets
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
مخاطب
توضیحات محصول جزئیات
MODEL: RS-15-5 DC VOLTAGE: 3A
CURRENT RANGE: 0 ~ 3A VOLTAGE ADJ. RANGE: 4.75 ~ 5.5V
برجسته:

electrical protective devices,dc power contactor

,

dc power contactor

RS-15-5 switching power supply , 15W Single Output Switching Power Supply for low voltage protection device AC to DC  .

Features :


  • Universal AC input / Full / range
  • Protections : Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convertion
  • Led indicator for power on
  • 100% full load burn-in test
  • No load power consumption < 0.5w
  • All using 105℃ long life electro lytic capacitors
  • Withstand 300VAC Surge input for 5 second
  • High operating temperature up to 70
  • Wighstand 5G vibration test
  • High efficiency , long life and high reliability
  • 3 year warranty

MODELRS-15-5
OUTPUTDC VOLTAGE5V
RATED CURRENT3A
CURRENT RANGE0~3A
RATED POWER15W
RIPPLE & NOISE (max.) Note.280mVp-p
VOLTAGE ADJ. RANGE4.75~5.5V
VOLTAGE TOLERANCE Note.3±2.0%
LINE REGULATION Note.4±0.5%
LOAD REGULATION Note.5±1.5%
SETUP, RISE TIME1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)70ms/230VAC 15ms/115VAC at full load
INPUTVOLTAGE RANGE85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE47 ~ 63Hz
EFFICIENCY (Typ.)77%
AC CURRENT (Typ.)0.35A/115VAC 0.25A/230VAC
INRUSH CURRENT (Typ.)COLD START 65A / 230VAC
LEAKAGE CURRENT<2mA / 240VAC
PROTECTIONOVERLOADAbove 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATUREU1 Tj 1400C typically (U1) detect on main controlIC Protection type : Shut down o/p voltage, recovers automatically goes down
ENVIRONMENTWORKING TEMP.-25 ~ +70 °C (Refer to "Derating Curve")
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-40 ~ +85°C , 10 ~ 95% RH
TEMP. COEFFICIENT±0.03%/°C(0 ~ 50°C)
VIBRATION10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY &
EMC

SAFETY STANDARDSUL60950-1, TUV EN60950-1 approved
WITHSTAND VOLTAGEI/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
EMI CONDUCTION & RADIATIONCompliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMS IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
OTHERSMTBF1608.8Khrs min. MIL-HDBK-217F (25°C)
DIMENSION62.5*51*28mm (L*W*H)
PACKING0.13Kg; 108pcs/15Kg/0.71CUFT









15W Low Voltage Protection Devices AC to DC Switching Power Supply 0
