Place of Origin: | China |
نام تجاری: | Jianghe |
Model Number: | ZJS-2 |
Minimum Order Quantity: | 1 |
---|---|
قیمت: | contact |
Packaging Details: | Carton box |
Delivery Time: | 10 days |
Payment Terms: | T/T |
Supply Ability: | 500PCS / month |
برجسته: | speed measuring instrument,digital panel indicator,digital panel indicator |
---|

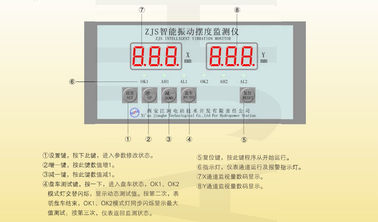

ZJS-2 Intelligent vibration swing monitor Key select vibration / swing monitoring mode
Sensitive : 5V/mm or 25V/mm
Frequency feedback : 0.5~2500Hz
Sensor working voltage : +12V , -12V
Analog output signal : DC4-20mA
Size : 170X300X150 mm

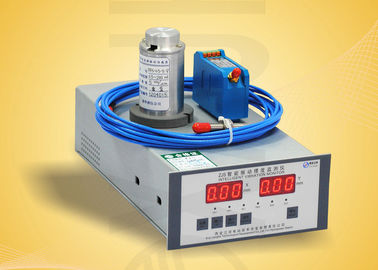

ZJS-2 intelligent vibration monitoring instrument is installed with MCU as the core processor of digital dual channel intelligent instrument. The instrument and electric eddy current displacement sensor is connected to the spindle on-line monitoring of X turbine generator unit, the radial vibration of Y direction, vibration online monitoring of vertical and horizontal two channels connected with the low frequency vibration sensor. The instrument with double channel digital display, analog and digital output. This product features: using MCU as the core processor of dual channel intelligent digital instrument, choose / swing vibration monitoring, display and Cheng Xiang corresponding standard analog signal output of dual channel, provide alarm status display and the normally open contact output, dual channel two alarm value can be set separately, with power and memory, automatic protection function parameters, can provide RS485 communication, using the MODBUS RTU protocol, provide the transmitter power source apparatus Table manufacturing advanced processing technology. Choose vibration / swing monitoring, display and range corresponding to the standard analog signal output of dual channel, provide alarm status display and the normally open contact output, dual channel two alarm value can be set separately, with power and memory, the parameters of self protection function, can provide RS485 communication. Using the MODBUS RTU protocol, the transmitter provides working power, advanced manufacturing processing instrument.
