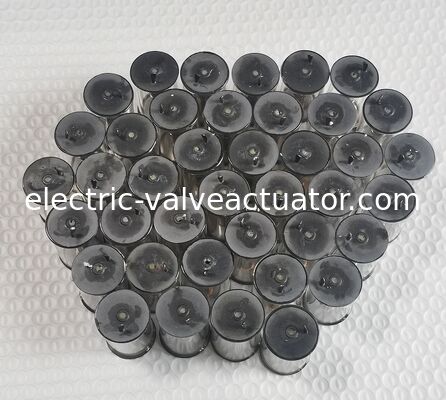

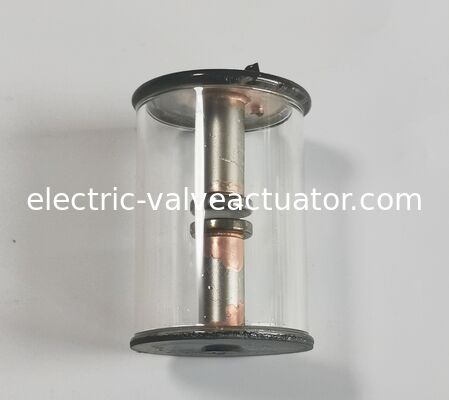

High Voltage Spark Gap for Boiler Ignition System

نام تجاری:	OEM
شماره مدل:	سری XDZ
مقدار تولیدی:	1 مجموعه
شرایط پرداخت:	T/T
توانایی عرضه:	500

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

جزئیات بسته بندی:

بسته بندی جعبه چوبی

قابلیت ارائه:

500

برجسته کردن:

High Voltage Spark Gap boiler ignition,Ignition System spark gap component,Boiler ignition high performance spark

Ignition System spark gap component

Boiler ignition high performance spark

توضیحات محصول

High Voltage Spark Gap for Boiler Ignition System

Standard Type Soft Rod Explosion Proof High Energy Igniting Gun XDZ-1R-l/d B 600～1400V

Product Overview

High energy ignition device that uses DC voltage input from ignition cable to discharge and form high energy electric sparks at the head.

Technical Advantages

Low ignition voltage
Excellent temperature resistance
Safety and reliability with strong pollution resistance

Applications

Used as assembly component for XDH high-energy ignition devices.

Product Models and Series

Sr.	Model	Description
1	XDZ-1-l/d	Standard type hard rod high energy ignition gun
2	XDZ-1-l/d B	Standard type hard rod explosion-proof high-energy igniting gun
3	XDZ-1-l/d K	Standard type hard gun handle high energy ignition gun
4	XDZ-1R-l/d	Standard type soft rod high energy ignition gun
5	XDZ-1R-l/d B	Standard type soft rod explosion-proof high-energy igniting gun
6	XDZ-2-l/d	Non standard hard rod high energy ignition gun
7	XDZ-2-l/d B	Non standard hard rod explosion-proof high-energy igniting gun
8	XDZ-2R-l/d	Non standard soft rod high energy ignition gun
9	XDZ-2R-l/d B	Non standard soft rod explosion-proof high-energy igniting gun
10	XDZ-3-l/d	Special electric nozzle high-energy igniting gun
11	XDZ-3-l/d B	Explosion proof special electric nozzle high-energy igniting gun
12	XDZ-4-l/d B	The hard rod high clearance point guns

Note:
① In the table, code "l" represents igniting gun length in mm
② In the table, "d" represents igniting gun diameter with 14mm, 16mm, 18mm series available
③ Custom designs and production available according to user requirements

Performance Parameters

Parameter Name	Unit	Data
Starting ignition voltage	VDC	600～1400
Center electrode resistance	Ω	≤0.1
Firing end long-term temperature	℃	≤800
Firing end short-time (<5min) temperature resistance	℃	1250
