Zhong He ZH3000 Series Φ8(30)×5m Reverse-mounted Probe Eddy Current Sensor for Shaft Vibration Measurement

Name: Zhong He ZH3000 Series Φ8(30)×5m Reverse-mounted Probe Eddy Current Sensor for Shaft Vibration Measurement
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: ZH3000
Price: 1.00 USD
Availability: InStock

نام تجاری:	Zhong He
شماره مدل:	ZH3000
مقدار تولیدی:	1
قیمت:	قابل مذاکره

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

جزئیات بسته بندی:

جعبه جدید اورجینال

برجسته کردن:

Reverse-mounted eddy current sensor,Shaft vibration measurement probe,Φ8(30)×5m rotational speed sensor

Shaft vibration measurement probe

Φ8(30)×5m rotational speed sensor

توضیحات محصول

Zhong He ZH3000 Series Φ8(30)×5m Reverse-mounted Probe Eddy Current Sensor

Professional eddy current sensor system designed for precise shaft vibration measurement in industrial applications.

Product Overview

The ZH3000 series eddy current sensor combines advanced performance with practical installation features. It maintains compatibility with earlier DWQZ series products while offering improved installation efficiency through high-density DIN rail insulation sockets that save significant space compared to traditional screw mounting.

Advanced Performance Features

Utilizing innovative materials and manufacturing processes, the ZH3000 series delivers enhanced linearity and frequency response while fully complying with API 670 Standard (4th Edition) requirements. The system features intrinsic safety design with Exia Ⅱ CT2~T6 explosion-proof certification for operation in hazardous environments.

Measurement Capabilities

Excellent static stability enables long-term displacement monitoring, while wide frequency response supports accurate measurement of shaft vibration, speed, and other physical states in rotating machinery.

System Configuration Options

Probe Diameters: Φ8mm, Φ11mm, Φ25mm specifications
Cable Lengths: 5m and 9m total system lengths
Installation Types: Forward installation, reverse installation, non-threaded options
Probe Cable Lengths: 1m or 0.5m options available

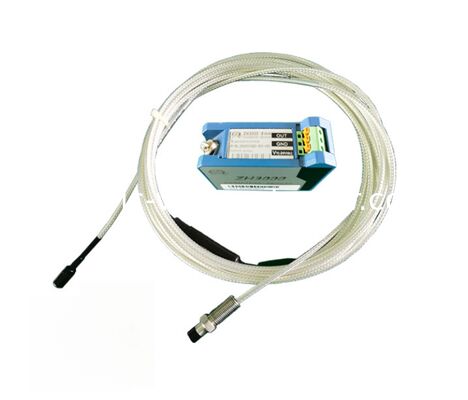

System Components

The ZH3000 eddy current sensor system consists of three integrated components:

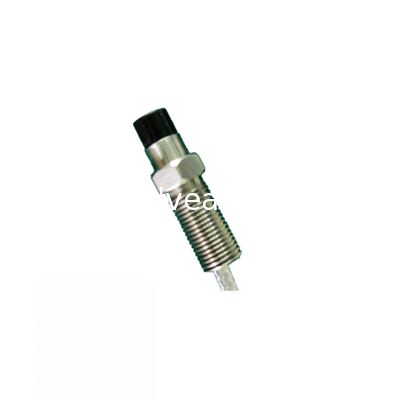

ZH3000 Probe

Comprising inductor, protective cover, stainless steel housing, high-frequency cable, and connector. Available in multiple diameter specifications and installation configurations to suit various measurement requirements.

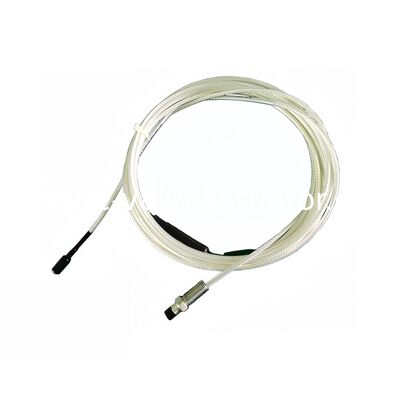

ZH3000 Extension Cable

Features SMA self-locking plugs with oil-resistant protective sleeves for reliable operation in contaminated environments. Available in 4m, 4.5m, 8m, and 8.5m lengths.

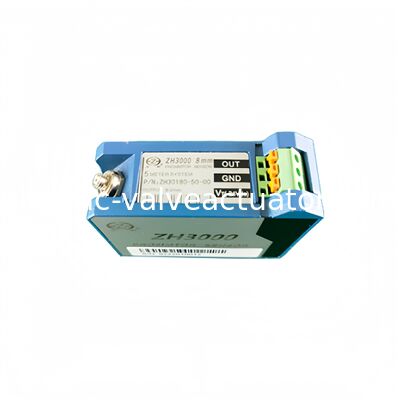

ZH3000 Preamplifier

The system core containing oscillation, linear detection, filtering, linear compensation, and amplification circuits. Matched to probe specifications and system cable lengths for optimal performance.
