Rotating Speed Calibration Devices , Calibration Check Equipment Series

Rotating Speed Calibration Devices , Calibration Check Equipment Series

  • Rotating Speed Calibration Devices , Calibration Check Equipment Series
  • Rotating Speed Calibration Devices , Calibration Check Equipment Series
Rotating Speed Calibration Devices , Calibration Check Equipment Series
جزئیات محصول:
Place of Origin: China
نام تجاری: OEM
Model Number: WZ-JY2
پرداخت:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
مخاطب
توضیحات محصول جزئیات
برجسته:

rotational speed measurement,turbine speed sensor

,

turbine speed sensor

Rotating Speed Calibration Devices , Calibration Check Equipment Series

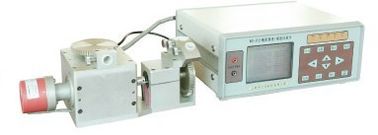

WZ-JY2 Rotating Speed Calibration Devices

Introduction

   This rotating speed calibration device can pro vide standard speed calibration signals in various conditions. It can support 3 rotating  speed sensors an the same time , calibrate them at the same time or calibrate a rotating over speed protection device with 2 out of 3 function.In addition, you can also install a low rotating speed sensor, that can measure a low speed of 0.5 r/min,so you can do the capstan rotating speed test. When you are doing a rotating speed test, there will be a rotating speed output signal (TTL  rect-wave), witch is synchronous with the rotation being tested.



Technical Parameters

1.Rotating speed calibration range: 0.5~6000r/min

2.Rotating speed range: 50~6000r/min

3.Rotating speed calibration accuracy: 0.03

4.Display error: ±1 r/min

5.Transmission ratio between low speed wheel and high speed wheel: 1:100

6.Maximum axis vibration calibration: 500μm

7.Rect-wave output:TTL  output

8.Rect-wave output load impedance:≥Ω

9.Instrument weight: 8Kg

10.Test bed weight: 9Kg

11.Working environmental temperature:-10℃~+70℃

12.Working environmental humidity:≤80%

13.Power supply : AC 200V/50Hz ±10%

14.Noise:≤35dB

15.Power consumed:100W at maximum

16.With electric motor operating current and break current indicator.



Orders guide

        Ordering code:WZ-JY2 Rotating Seed Calibration Devices

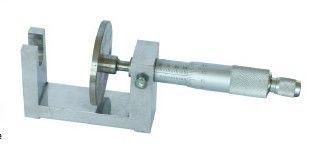

Axial Displacement static Cailbration Device

Functions

      This device is a necessary equipment for factory cailbration of sensors or user acceptance of the linearity of eddy current displacement static calibration device is needed to cailbrate various displacement instuments.



Technical Parameters

1. Calibration range: 0~10mm

2.Test material: AISI14140(420rMOA steel) or45# steal

3.Test part diameter: Φ75mm

4.Calibration reference: micrometer

5.Calibration accuracy: micrometer accurac
