Place of Origin: | China |
نام تجاری: | OEM |
Model Number: | JM-C-5S |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Wooden box packing |
Delivery Time: | 15 days after signing the contract |
Payment Terms: | T/T |
Supply Ability: | 1000sets |
برجسته: | electronic measuring devices,rotational speed measurement,rotational speed measurement |
---|
Use

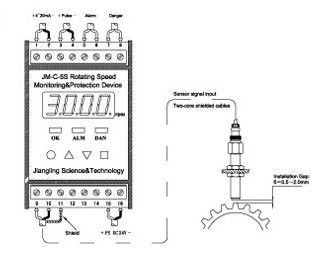

This device mainly applies to rotating speed real time measuring. It can use suitable sensor in accordance with actual situation.This device greatly improvedthe simplicity of installation and relivbility, it can works on a rotating mechanism with 1 to 120 evenly distribyted teeth, and accuracr of 1 r/min. It has maximumvalue memory and diaplay, 2 alarm switch outputs, 4~20 mA current output and other functions.
The device prominents people-centered guiding ideology, it is highly intelligent, fully operational with control panel, suitable for on-line monitoring for a long time, needing no site maintenance.
Functions
1.Highly Intelligent, all parameters canbe set on a control panel.
2.Suitable for on-line monitoring for a long time, easy to install and debug, needing no site maintenance.
3.2 level alarm switch output.
4.4~20mA analog current output.
5.Free configurations of measuring range, alarm and dangerous parameters.
6.Record and inquirie of maximum sample value.
7.Passwork protection function.
Technical Parameters
1.Display mode: Digital LED display
2.Measuring ranger: 0~9999 r/min
3.Measuring accuracy: ±1 r/min
4. Alarm configuration: Any value between 0~9999 r/min (factory number 3150 r/min)
5.Danger configuration: Any value between 0~9999 r/min (factory number 3270 r/min)
6.Tooth number configuration: Any number between 1~120(factory number 60)
7.Input signals: CS-1, CS -3 rotating speed sensors, CWY-DO-Φ8mm eddy current sensor
8.Output signals: 2 level switch output: AC250V/5A, DC 27V/2A
Current output 4~20mA (load≤1KΩ)
PULSE signal output(12V peak-peak)
9.Working environment: Environmental temperature: -10~65℃ Relative humidity: ≤85%
10.Power voltage: DC +24V (power consumed≤3W)
11.Installation: DIN T-rail Installation
12. External dimension:75mm(height)×45mm(length)×105mm(depth)
