Single-Hole Digital Speed Indicator , Cam Subminiature Change-Over Switches

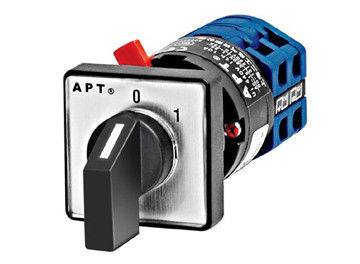

LW39-10 subminiature change-over switches are widely applicable to the places with quite small installation space. The single-hole installation method same with that of LA39 series of buttons is used with the installation hole diameter of 16mm or 22mm. The international popular built-in wiring method is used, which is safe and reliable. The actuation head is designed with the sealing element and has a protection class of IP64. The gold-plated silver alloy contactors are used as contact to ensure the contact reliability under the low voltage and current.

Technical Parameters

Rated Insulation Voltage Ui:440V
Conventional Thermal Current Ith: 10A
Power Frequency Withstand Voltage: 2500V, 1min
AC Service Life: 200,000 times
DC Service Life: 100,000 times
Mechanical Service Life: 300,000 times
