Pneumatic Actuated Power Station Valve Fire And Explosion Prevention

شماره مدل:	ZSQ-402
مقدار تولیدی:	10
شرایط پرداخت:	TT
توانایی عرضه:	10000/ month

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

Place of Origin:

China

Packaging Details:

carton box

Supply Ability:

10000/ month

برجسته کردن:

,

power plant valves

توضیحات محصول

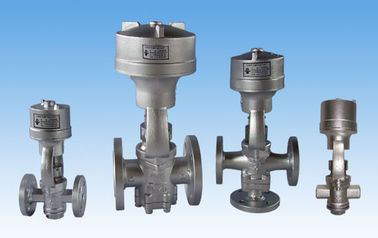

Pneumatic Actuated Power Station Valve Fire And Explosion Prevention

Pneumatic two-bit two, three-way cut-off valve, receive air pressure signal of regulation instrument, close or open valve, regulate processing parameters of pressure, temperature, flow and liquid level of system, also can receive manual given signal, achieve remote operation

This valve contain simple structure, reliable sealing, convenient maintenance and fire and explosion prevention

Structure features:
Piston actuator, small size, large output force

Sealing surface of valve spool, use soft PTFE, reliable sealing

Easy to change three-way to two-way with valve cover

Use balanced valve spool, small unbalanced force, piston actuator, enough output force

Nominal diameter DN(mm)	G1/2”	25		40		50
Diameter of valve seat DN(mm)	12	20	25	30	38	48
Nominal pressure PN(MPａ)	4.0
Travel mm	10	16		25
Signal pressure KPａ	350
Maximum output force N	1200	3840		8470		13670
Working temperature ℃	－40～200℃
