نام تجاری: | OEM |
Model Number: | JM-C-7F |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Wooden box packing |
Delivery Time: | 15 days after signing the contract |
Payment Terms: | T/T |
Supply Ability: | 1000sets |
برجسته: | electronic measuring devices,rotational speed measurement,rotational speed measurement |
---|
This hanging on wall style intelligent vibration monitoring and protection device has a aluminum die casting chassis,whitch make this device get a IP55 portection level.It mainly applies to power generation,iron and steel,metallurgy,chemical industry and other fields,it can continually monitor rotating speed in various rotating mechanisms,to help users understand the operation of equipment and do maintenance.
Functions
1.Highly Intelligent, all parameters can be set on a control panel.
2.Suitable for on-line monitoring for a long time, easy to install and debug, needing no site maintenance.
3.With hanging on the wall structure and aluminum die casting chassis, it has a protection level of IP55.
4.2 level alarm switch output.
5.4~20mA analog current output.
6.Free configurations of measuring range and alarm value.
7.Real time TDM signals output.
8.Automatic record and inquirie of maximum sample value.
9.F-Rrotating monitoring and protection.
Technical Parameters
1.Display made: Digital LED diaplay.
2.Measuring range: 0~9999r/min
3.Measuring accuracy: ±1r/min
4.Tooth number: Any number between 1~120(factory number 60)

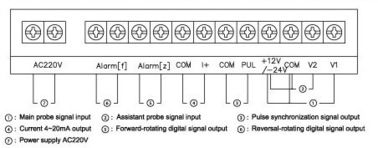

5.Input signal: 2 CS-3 sensor siganals, CS-3F sensor signal
6.Output signal: Current output 4~20mA (load≤1KΩ)
2level switch output : DC 27V/2A or AC250V/5A
PULSE signal output (12V peak-peak)
7.Environmental tenperature: -10~65℃(Relative humidity: ≤85%)
8. Power votage: AC 220V/50Hz±10%
9.Installation: Hanging on walls
10. External dimension: 240mm(length)×190mm(width)
11.Installation hole size and pattern:275mm(length)×170mm(width)(diameter:Φ5mm)
