محل منبع: | China |
نام تجاری: | OEM |
شماره مدل: | JM-B-201 |
مقدار حداقل تعداد سفارش: | 1 set |
---|---|
جزئیات بسته بندی: | Wooden box packing |
زمان تحویل: | 15 days after signing the contract |
شرایط پرداخت: | T/T |
قابلیت ارائه: | 1000sets |
برجسته: | rotational speed measurement,turbine speed sensor,turbine speed sensor |
---|
Use
This device applies to power generation, iron and steel, metallurgy, chemical industry and other fields, it can continually monitor bearing vibrations and bearing temperature in various rotating mechanisma, to help users understand the opeartion of equipment and do maintenance.
Functions
1.Highly Intelligent, all parameters can be set on a control panel.
2.Suitable for on-line monitoring for a long time, easy to installand debug, needing no site maintenance.
3.2 level alarm digital output.
4.4~20mA analog current output.
5.Free configurations of measuring range, alarm and danger value.
6.Automatic record and inquirie of maximum sample value.
7.Monitoring vibration and temperature of one point at the same time.
Technical Parameters
1.Sensors: Signal type: Vibration(bearing vibration)and temperature (PT100) two signals.

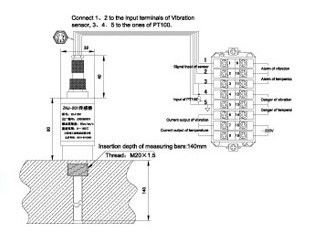

External dimensions and installation map:see fig.
2. Display made: digital LED display
3.Measuring range: Amplitude:0~200μm*,0~300μm,0~500μm(peak-peak)
Intensity: 0~20mm/s*,0~40mm/s(RMS)
Frequency:10~300Hz(bearing vibration)/1~3000Hz(axis vibration)
4.Measuring accuracy: ±0.5 class, linear error ≤1%FS
5.Input signal: ZHJ-201 Vibration and tempereture sensor
6.Output signal: Current output: 4~20mA(load≤1KΩ)
2 level switch output: DC 27V/2A or AC250V/5A
7.Environmental temperature: -10~65℃(Relative humidity: ≤85%)
8. Installation thread: M20×1.5
9.Power votage: AC200v/50Hz±10%
10.Installation: Disk
11.External dimension: 48mm(length)×96mm(height)×110mm(depth)
12.Hole size: (45+0.7mm)×(92+0.7mm)
